Heat Pump Installation in Vancouver: What Owners Pay in 2026

Heat pump installation in Vancouver typically costs between $12,000 and $19,000 before rebates, with up to $16,000 in CleanBC and utility incentives available when switching from fossil fuel. A proper conversion requires navigating municipal property line noise bylaws, verifying 100-amp electrical capacity, and sizing equipment specifically for wet coastal winters. Modern systems handle both heating and cooling from a single unit while cutting home heating costs by up to 60%.

When autumn rainfall arrives in Vancouver, legacy gas furnaces begin to show their age. Moving to a heat pump setup trades noisy combustion for steady, all-season comfort. Getting the installation right comes down to matching equipment capacity to your home heat loss so your system runs at peak seasonal efficiency.

How City of Vancouver Noise Bylaws Dictate Outdoor Condenser Placement

In the City of Vancouver, outdoor unit placement is governed by strict property boundary noise bylaws and zoning setbacks. Standard 33-foot urban lots leave little room for error. Locating an unrated condenser in a narrow side yard will trigger municipal complaints and fail acoustic inspection, making outdoor sound ratings and placement geometry your first engineering priority.

Acoustic Decibel Limits on Standard 33-Foot Urban Lots

The City of Vancouver evaluates mechanical sound levels directly at the adjacent property line. In quiet residential zones, daytime limits generally sit between 45 and 55 decibels, dropping further at night. Installing an entry-level single-stage compressor operating at 68 to 72 decibels near an adjoining lot line guarantees a failed municipal inspection. Variable-speed inverter units drop continuous operating sound down to 48 to 58 decibels, keeping the system compliant on narrow urban footprints.

Side Yard Setbacks and Avoiding Boundary Disputes

Placing an outdoor unit into a narrow property setback without checking sound ratings often leads to disputes with neighbors. Most residential zoning rules require outdoor mechanical equipment to sit outside primary side-yard pathways. Positioning the unit along a back wall, facing toward the rear lane, keeps the installation legal and leaves clear passage for city inspectors.

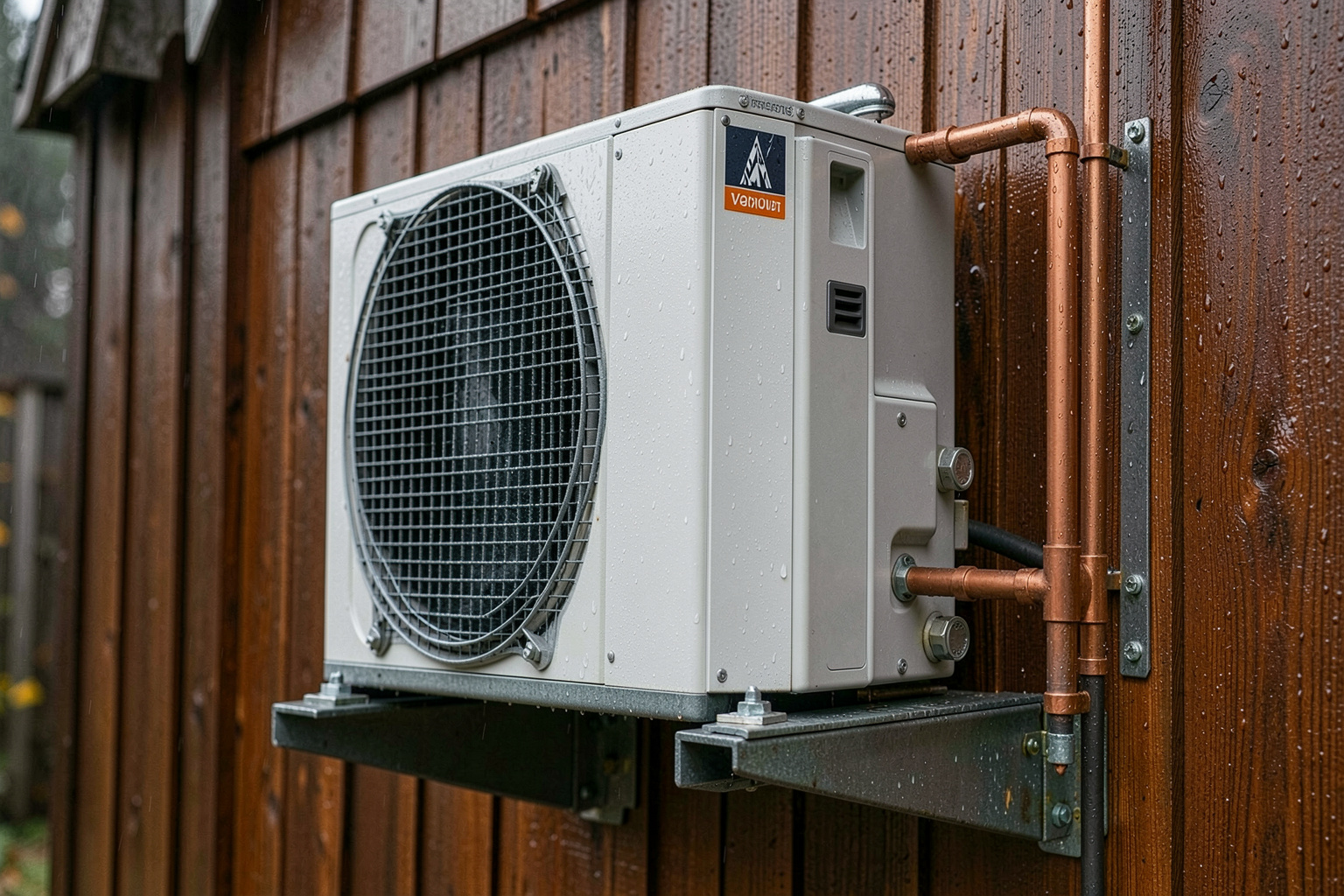

Why Sizing a Heat Pump for Vancouver Winter Humidity Differs from Colder Climates

Vancouver winters hover persistently between 1°C and 5°C with relative humidity frequently exceeding 80%, which creates heavy frost accumulation on outdoor coils. Because the unit enters automated defrost cycles frequently in wet maritime conditions, elevating the condenser on sturdy wall brackets or snow stands is mandatory to keep meltwater draining freely rather than refreezing into a solid base. As outlined in guidelines from Natural Resources Canada on heating and cooling with a heat pump, managing maritime defrost patterns requires cold-climate systems that maintain output through freezing damp conditions without relying on auxiliary resistance coils.

Selecting and positioning equipment for wet coastal weather involves specific safeguards:

• Choose variable-speed inverter compressors, such as cold climate Mitsubishi heat pumps, that regulate output smoothly to prevent rapid coil freezing during long rainy spells.
• Mount the outdoor condenser on heavy-duty wall brackets or 12-inch ground stands to keep the base clear of pooled rainwater and slush.
• Direct condensate runoff through heat-traced lines away from walkways, eliminating sheets of black ice on cold mornings.
• Avoid oversizing the unit, which causes short-cycling and excessive wear during mild shoulder months.

Managing Coastal Maritime Humidity and Automated Defrost Cycles

During cold, saturated weather, ambient moisture condenses and freezes on outdoor aluminum fins. The system temporarily reverses its refrigerant flow to melt this frost, drawing heat from the refrigerant circuit for three to eight minutes. When outdoor temperatures hover near freezing in the Lower Mainland, a unit may run a defrost sequence every 45 to 90 minutes. Modern systems monitor fin temperature and air pressure differentials directly, initiating defrost only when necessary to protect indoor comfort.

Elevating Condensers to Prevent Ice Damming and Walkway Runoff

Defrost cycles and continuous wet weather generate significant daily condensate that must be piped away deliberately. If an outdoor drain terminates onto a shaded walkway or adjacent patio, freezing coastal nights will turn that runoff into a hazardous sheet of black ice. Elevating the unit provides clearance for water to escape into gravel drainage pits without touching perimeter walkways or building footings.

Does Your Older Vancouver Home Require a 200-Amp Electrical Panel Upgrade

Homeowners often believe a heat pump conversion automatically forces a disruptive 200-amp electrical service upgrade, but that depends entirely on a formal Canadian Electrical Code load calculation. If the home uses gas for hot water and cooking, a modern inverter-driven cold-climate system can often fit on an existing 100-amp service, or integrate with an intelligent energy management device. Upgrading domestic water heating at the same time to efficient heat pump water heaters can further help rebalance total electrical draw while unlocking stacked incentives.

Electrical Scenario	Typical Existing Service	Major Household Appliances	Panel Upgrade Required
Gas-to-Electric Conversion (Gas Water Heater Retained)	100 Amps	Gas range, gas dryer, gas water heater	Rarely (Load calculation usually passes)
Partial Decarbonization (Electric Appliances Present)	100 Amps	Electric range, electric dryer, gas water heater	Possible (Resolved with an energy management device)
Full Electrification with EV Charging	100 Amps	Electric range, heat pump water heater, Level 2 EV charger	Yes (Full 200-amp utility upgrade required)
Modernized Residential Service	200 Amps	All-electric HVAC, induction cooking, vehicle charging	No (Sufficient capacity for cold-climate systems)

When a 100-Amp Service Can Support an Inverter Compressor

Older single-family homes and character residences throughout Kitsilano and East Vancouver frequently operate on legacy 100-amp electrical panels. Modern variable-capacity inverter compressors ramp up gradually without the massive inrush current of older single-stage units. Their running load amps remain relatively low. A three-ton cold-climate outdoor condenser typically requires a dedicated 25-amp to 35-amp double-pole breaker, which fits on an existing 100-amp panel when major appliances run on natural gas.

Energy Management Devices and Load Calculation Realities

If your electrical panel space is tight, an intelligent energy management device offers an alternative to a utility service change. These code-approved devices monitor total household amperage continuously. If home power usage nears 80 percent of panel capacity, the device temporarily pauses non-essential circuits like an electric vehicle charger, ensuring the heat pump maintains indoor heating. This approach avoids thousands of dollars in utility trenching on older properties.

What Happens to Existing Furnace Ductwork During an Electric Heat Pump Conversion

Replacing a gas furnace with a central heat pump using the home's original ductwork requires a thorough static pressure check. Heat pumps deliver steady warmth at higher cubic feet per minute and lower supply air temperatures than gas furnaces, meaning undersized sheet metal return trunks will starve the blower motor, generate whistling air noise, and shorten equipment life. Verifying and balancing airflow requires comprehensive heating and cooling Vancouver mechanical assessments across the home's distribution grid.

Airflow Volume Differences Between Gas Furnaces and Inverter Heat Pumps

A conventional gas furnace produces supply air temperatures between 50°C and 60°C, operating at lower airflow volumes with long off cycles. An inverter heat pump delivers continuous warmth with supply air temperatures around 35°C to 42°C. To distribute this heat evenly, the system circulates roughly 350 to 450 cubic feet per minute per ton of capacity. Squeezing this volume through restrictive ducting raises static pressure, which strains the variable-speed blower motor and decreases seasonal efficiency.

Static Pressure Testing and Modifying Return Air Trunks

Before installing a central air handler, technicians test external static pressure across the return and supply drops using digital manometers. In homes built prior to 1980, the return air drop is often undersized. Expanding the return air drop, adding an aerodynamic transition elbow, and fitting a five-inch deep-pleated media filter lowers overall resistance, ensuring quiet operation and protecting equipment longevity.

Why City of Vancouver Permits and Registered Contractor Sign-Off Protect Your Rebates

Skipping trade permits in the City of Vancouver is a critical mistake that immediately forfeits your CleanBC provincial rebate eligibility. Both electrical and mechanical permits must be pulled by a licensed contractor prior to the rough-in, and the final municipal inspection report is a mandatory proof-of-completion document required by the rebate program administrators. Financing options and rebate steps outlined in our heat pump rebates guide require strict adherence to provincial documentation standards.

1. Mechanical and Electrical Permit Application: Before starting work, licensed contractors submit mechanical layout sheets, sound level calculations, and electrical schematics to the City of Vancouver Development and Building Services Centre.
2. Rough-In Installation and Pressure Verification: Certified technicians run refrigerant lines and complete deep vacuum testing, while licensed electricians run dedicated circuit lines.
3. City Trade Inspections: Municipal electrical and mechanical inspectors visit the property to confirm wiring compliance, equipment grounding, outdoor sound setback adherence, and condensate safety lines.
4. CleanBC Registered Contractor Sign-Off: The verified contractor completes formal commissioning documentation, logs static pressures and refrigerant trim weights, and issues the compliance package required by utility grant administrators.

Navigating City of Vancouver Mechanical and Electrical Trade Permits

Vancouver enforces its own building and energy bylaws alongside provincial plumbing and electrical codes. Permitting confirms that outdoor equipment respects acoustic property lines, electrical breakers are sized correctly according to the Canadian Electrical Code, and refrigerant piping meets safety standards. Unpermitted work risks municipal stop-work orders and outright rejection during future home sales.

Securing CleanBC Rebate Eligibility Through Verified Installers

CleanBC Better Homes and utility programs do not issue rebates to unaccredited installers or do-it-yourself homeowners. Rebate administrators require invoices and compliance forms from a verified CleanBC Registered Contractor. This accreditation confirms the contractor performs load calculations using standard CSA-F280 procedures, ensuring your heating system meets design specifications.

What Homeowners Actually Pay for Heat Pump Installation in Vancouver After Rebates

CleanBC and utility grant frameworks mandate that installations be completed by a verified CleanBC Registered Contractor to access up to $16,000 in combined incentives. Transitioning from fossil fuel heating to a qualified heat pump can save up to 60% on home heating costs. The gross project cost covers certified equipment along with required permits and commissioning.

System Configuration	Typical Application	Average Gross Cost	Available Rebates	Net Out-of-Pocket Range
Central Ducted Heat Pump	Homes replacing central gas furnaces	$14,000 to $21,000	Up to $16,000	$5,000 to $9,000
Multi-Zone Ductless Mini-Split	Character homes, split-levels, baseboard heat	$12,000 to $19,000	Up to $16,000	$4,000 to $8,000
Air-to-Water Hydronic System	Homes with radiant in-floor or hydronic loops	$20,000 to $28,000	Up to $16,000	$9,000 to $14,000

Gross Equipment and Labour Costs for Central and Mini-Split Systems

Gross installed pricing reflects the physical complexity of the home. A central ducted replacement where existing ductwork requires minor modifications sits near the lower cost band. Homes requiring complex line hides across finished living spaces fall near the higher band.

Stacking CleanBC and Utility Grants to Minimize Net Out-of-Pocket Expense

Transitioning off fossil gas in the City of Vancouver qualifies homeowners for stacked incentives through the CleanBC Better Homes program, municipal top-ups, and utility grants. When switching from an active fossil-fuel system, these programs combine for up to $16,000 in support. Sizing equipment based on detailed room-by-room heat-loss calculations rather than rough square footage ensures you select the correct capacity, minimizing both upfront equipment costs and ongoing hydro bills.

To confirm system sizing and review available rebates for your property, book a free in-home quote online with our CleanBC Registered team or call Combined Comfort Systems at 604-514-1132.

Frequently Asked Questions

Do I need to upgrade my electrical panel to 200 amps before installing a heat pump in Vancouver?

A formal Canadian Electrical Code load calculation determines your panel capacity. Homes that retain gas for domestic hot water and cooking can often run an efficient inverter heat pump on an existing 100-amp panel, or pair the unit with an intelligent energy management device to avoid a costly utility service upgrade.

Can a cold-climate heat pump heat an older Vancouver home during freezing outflow winds?

Modern cold-climate inverter heat pumps extract thermal energy and maintain rated heating capacities well below freezing without burning gas. In older, drafty homes with single-pane windows, systems can be fitted with a supplementary electric resistance strip in the air handler for extreme sub-zero weather events.

How much can I receive in government rebates for a Vancouver heat pump conversion?

Eligible homeowners can access up to $16,000 in combined CleanBC Better Homes and utility incentives when converting from a fossil-fuel heating system. These grants require that all electrical and mechanical work is fully permitted and completed by a verified CleanBC Registered Contractor.

How do City of Vancouver noise bylaws affect outdoor heat pump placement?

Municipal acoustic bylaws enforce strict sound limits at the property boundary, typically restricting continuous mechanical noise to between 45 and 55 decibels depending on neighbourhood zoning. On narrow 33-foot urban lots, this requires low-decibel inverter condensers placed outside narrow side-yard setbacks.
